Blackvue DR770X-2CH Truck 64GB 3-Year Warranty

Blackvue DR770X-2CH Truck 64GB 3-Year Warranty

$799.00 AUD
$799.00 AUD
Sale Sold out
Shipping calculated at checkout.
  • Stock on Order - Will Arrive Soon!

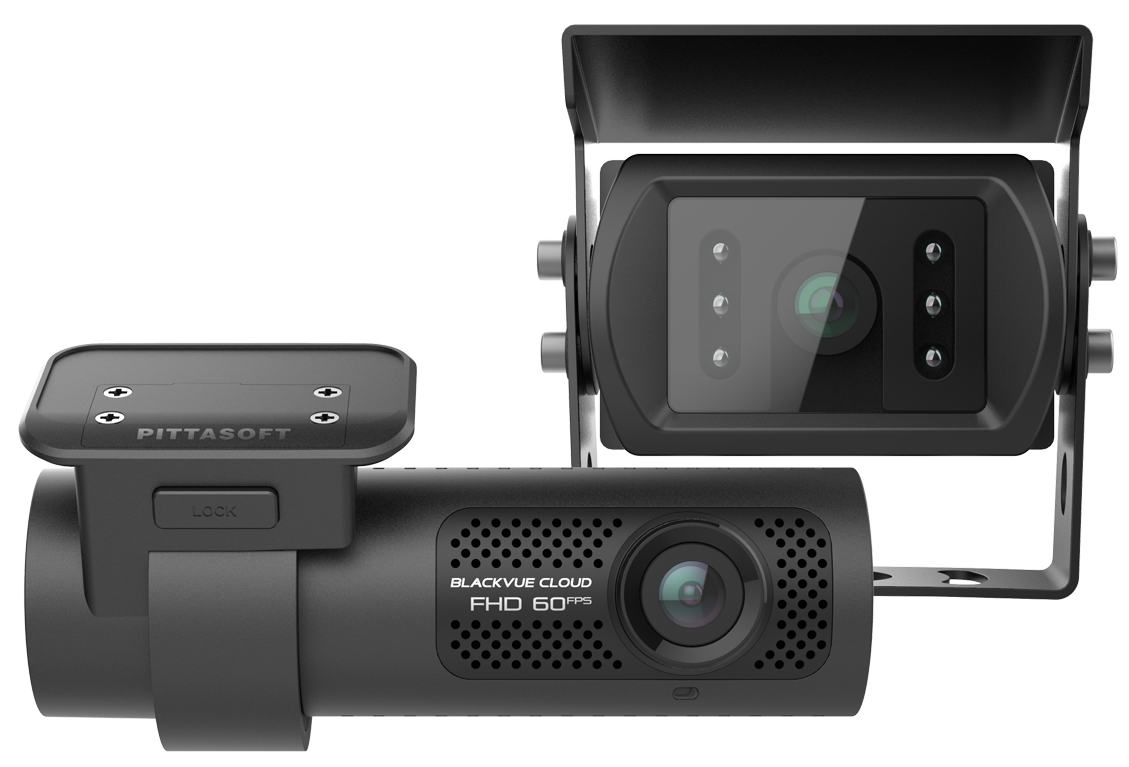

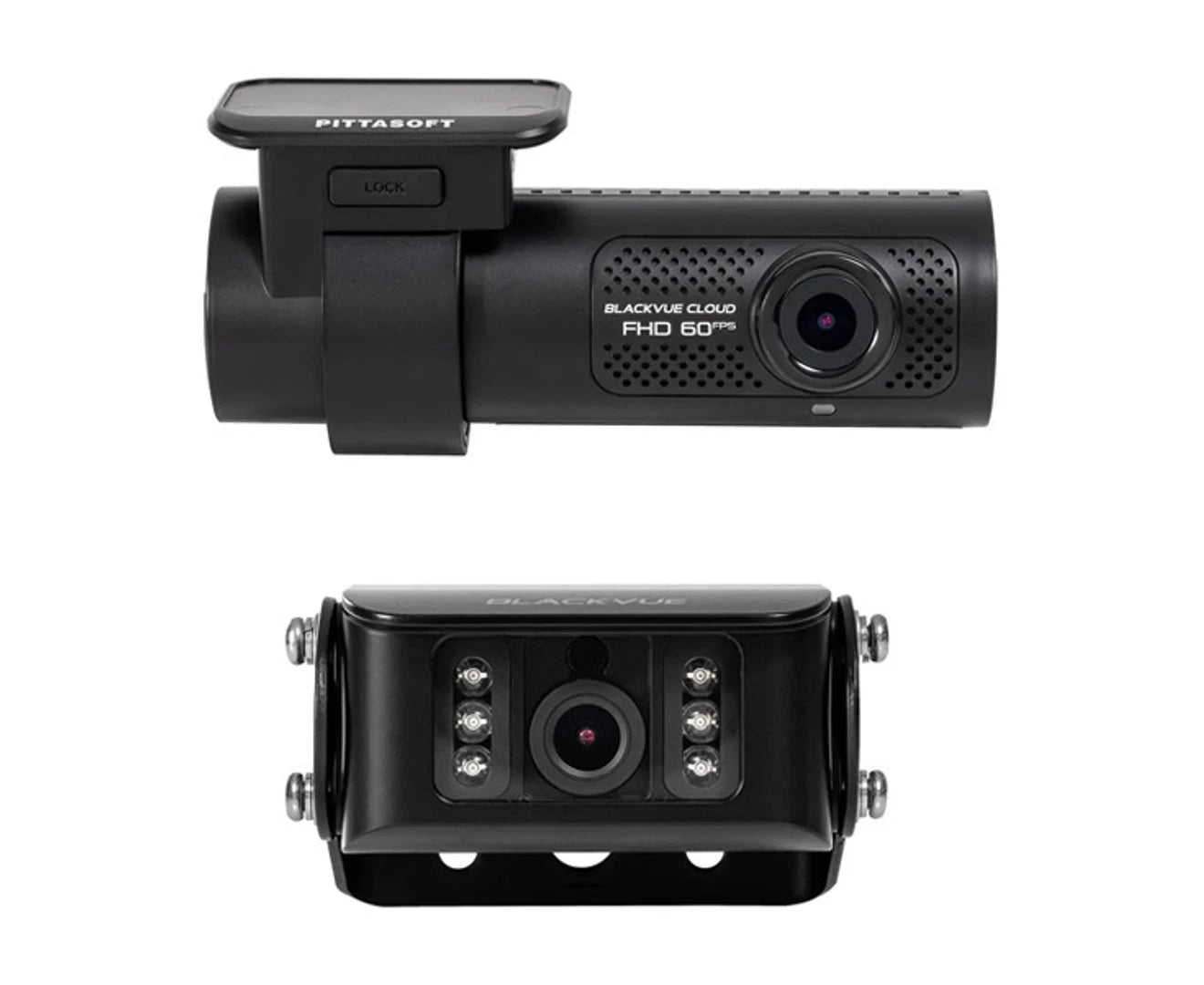

  • BlackVue DR770X-2CH TRUCK
  • Full HD Cloud Dashcam with External Waterproof Infrared Rear Camera.
  • Ideal for trucks, vans, and commercial vehicles.
  • 2CH High-end Premium Package with Cloud Features
  • Dual Full-HD 2.1MP Recording
  • Next Generation Sony Starvis Sensor
  • 3-Year Warranty with #1 Local Australian Support
  • Made in Korea
Specifications
Model Name DR770X-2CH TRUCK
Channel

2CH
Highlights

Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Product Dimensions

Front:  W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105g (3.70 oz)
Rear: W 70.0 mm (2.76″) x H 44.4 mm (1.75″) / 175 g (6.17 oz)
Rear Camera Connection

Waterproof coaxial cable
Memory Support

microSD card up to 256GB
Recording Modes

– Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode

YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications

YES
Imaging Sensor

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate

Front / Rear
Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
* Frame rate may vary during Wi-Fi streaming
Video Codec

H.264 (AVC)
Image Quality and Bitrate Front/Rear

Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free

YES (Adaptive)
Event File Overwrite Protection

YES (up to 50)
SD Card Failure Alert

YES
Scheduled Reboot

YES
Video File Extension

MP4
Wi-Fi

Built-in (802.11 b.g.n)
Cloud Compatible

YES
GPS

Built-in (Dual Band: GPS, GLONASS)
Microphone

Built-in
Speaker

Built-in
Impact Sensor

3-Axis Acceleration Sensor

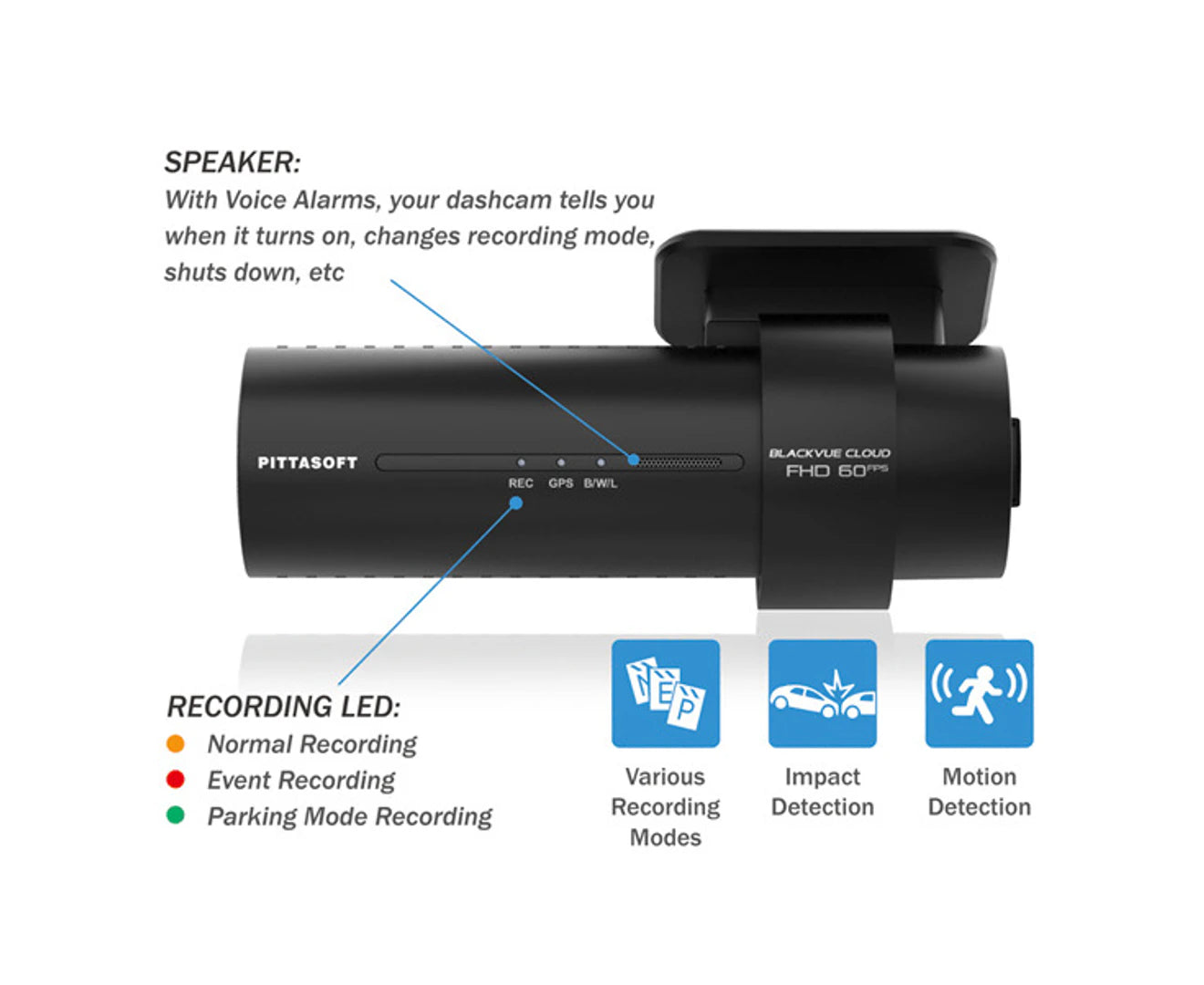

LED Indicators

Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
Rear: Rear Security LED

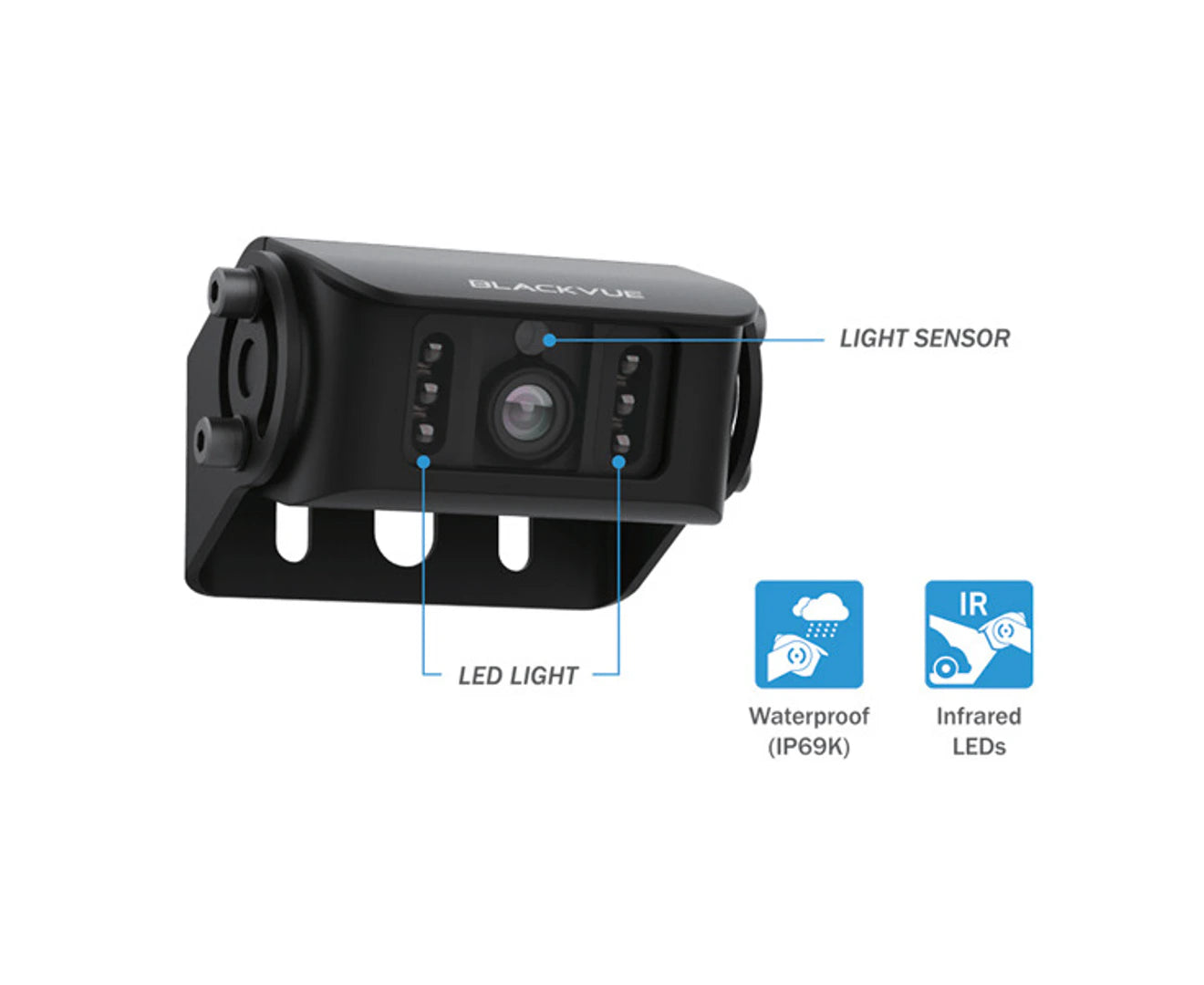

Rear Camera IR Illumination

940 nm, 6 Infrared (IR) Lights
Button

Button: Wi-Fi ON/OFF (Tap)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature

-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature

-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off

Approx. 80 °C (176 °F)
Backup Battery

Built-in supercapacitor
Input Power

DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour

Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V
Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V
Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V
Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Certifications

Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
Software

BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra (10.12) or higher
Application

BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others

Adaptive Format-Free File Management System

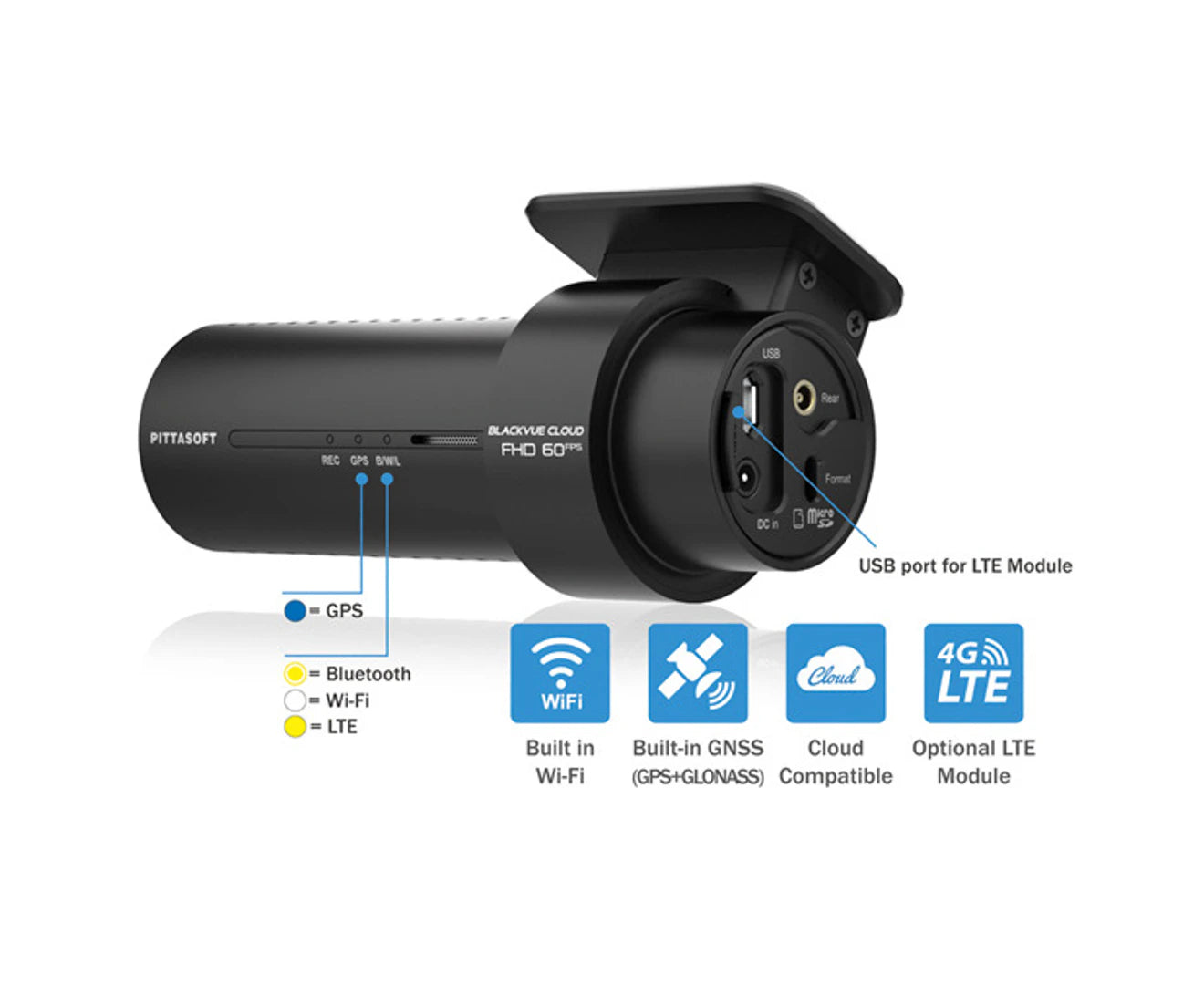

LTE External (Optional)
